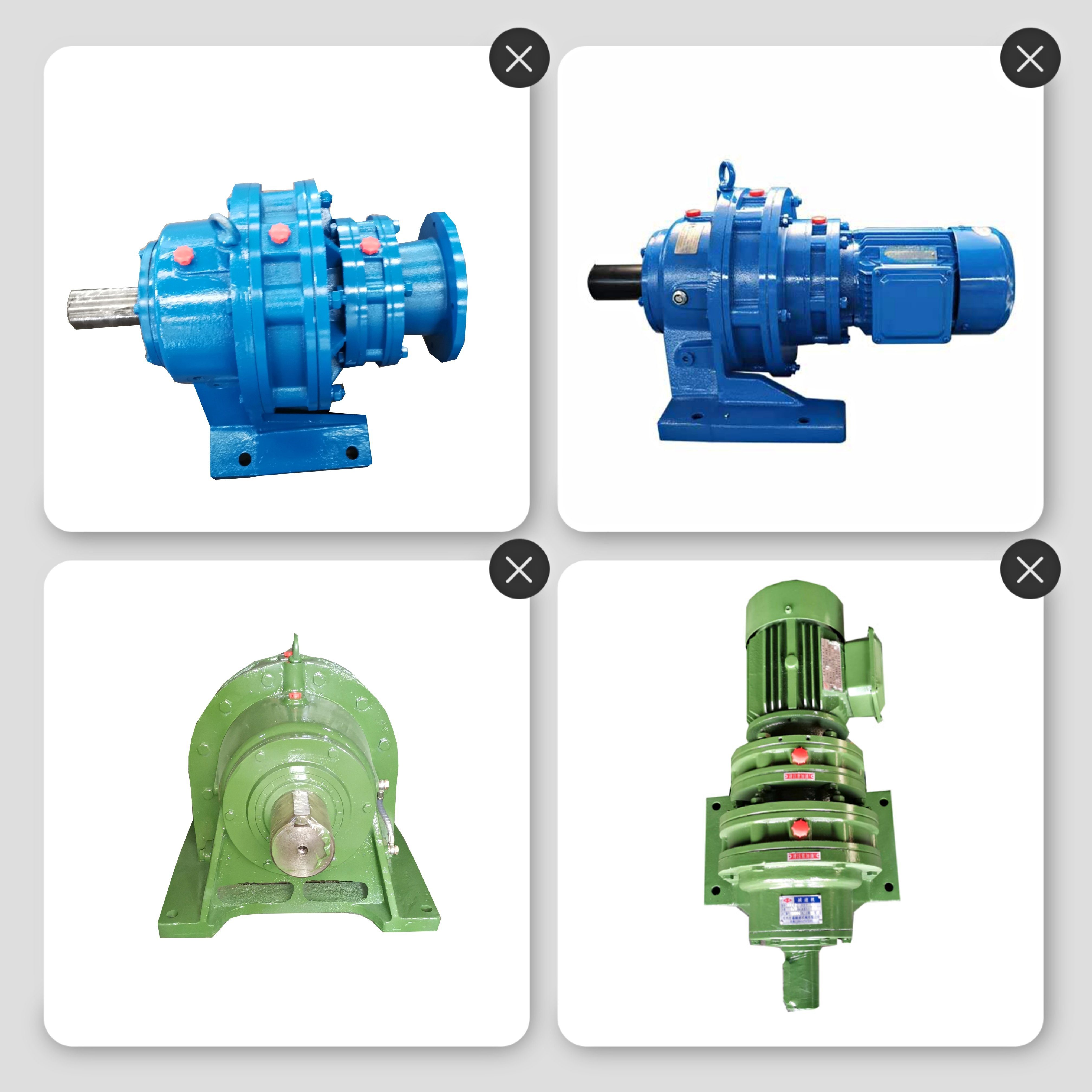

XWED Cycloid Reducer

[Series] X Series Cycloid Reducer

[Structural form] Horizontal

Input Connection Form] Directly connected to the motor

[Number of stages] Two stages

Reduction ratio] X series reducer ratio:

131,187,289,391,473,493,595,714,841,1003,1225,1505,1849,2065,2537,3481,5133; (please contact the website for the specific reduction ratio)

[Model No.] There are 14 types of secondary X series: 00,20,32,42,53,63,64,74,84,85,95,106,117,128 (please contact our customer service center for specific model number).

XWED Cycloid Reducer Product Introduction

XWED cycloid reducer is named according to the installation form of the reducer.

The whole structure of the transmission device can be divided into three parts: input part, deceleration part and output part.

The input structure is the high-speed part, connected to the input motor (motor); the output part is the low-speed part of the reducer, and the output shaft is connected to the equipment that the user needs to drive through the sprocket or coupling, connecting disk and so on.

XWED cycloidal reducer product features

1. Large rotation ratio: X series cycloid reducer is divided into one, two and three rotation ratios. This series of reducer is the second level of the rotation ratio of 121-1225. The larger the number of stages, the larger the rotation ratio.
2. Compact structure, small volume: compared with other reducers of the same power, the weight and volume are more than 1/3 smaller. Due to planetary rotation, the input and output shafts are on the same axis, so it can get smaller size.
3. Strong overload capacity, impact resistance, small moment of inertia, suitable for frequent starting and forward and reverse operation.
4. Reasonable design, convenient maintenance, easy to disassemble and install, few parts, simple and convenient lubrication.
5. Reliable use, less failure, long life. The parts are made of high carbon alloy steel quenched and refined. And the cycloid teeth and needle teeth set meshing transfer to the needle teeth to form rolling friction, friction coefficient is small, so that the meshing area without relative sliding, minimal wear and tear, durable.
6. Smooth operation, low noise. Cycloid pinwheel meshes more teeth, overlap coefficient and has a smooth mechanism, limiting noise and vibration.

XWED cycloid reducer product use range

1. The cycloid reducer allows operation in both forward and reverse directions and can work continuously for 24 hours a day.
2. Its unique smooth structure can replace cylindrical gear reducer and worm gear reducer in many cases.
3. The products are widely used in the reduction mechanism of various transmission machines, such as light industry, chemical industry, iron and steel metallurgy, automobile manufacturing, textile printing and dyeing, packaging and printing, mechanical equipment and other industries.
