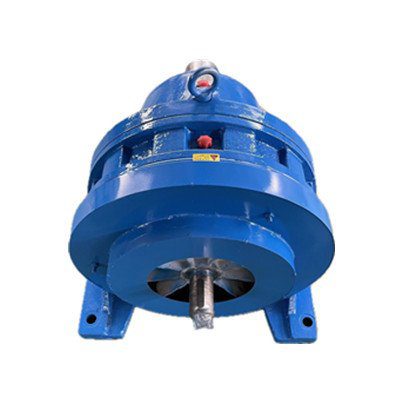

XW11-23 Sky-reduced label with fan double-axis type cycloid reducer

XW11-23 Sky-reduced label with fan double-axis type cycloid reducer
XW11-23 Sky-reduced label with fan double shaft type cycloid speed reducer model
XW series of cycloid reducer utilizes the initial letter W in Hanyu Pinyin to indicate horizontal cycloid reducer. Horizontal cycloid reducer models are expressed as: BWD XWD BWY XWY BWED XWED BWEY XWEY BWSD XWSD XWSD BW XW XW BW XW BWE XWE and other series of cycloid reducer models.

XW11-23 days to reduce the standard with fan double-axis type cycloid reducer features
The basic working principle of the cycloid reducer is based on the theory of planetary transmission cycloid meshing.

The main components of the cycloid reducer include the input device, deceleration device, and output device. The three together constitute a complete transmission device.

The volume is relatively small, the structure is compact, and the reduction ratio is large.

The speed reducer can help mechanical equipment run smoothly.

The cycloid reducer is able to realize continuous work and can run from two opposite directions.

The axial force and radial force that the output equipment of the cycloid reducer can withstand need to be controlled within a certain range, and when the withstand force is large, appropriate measures need to be taken to ensure that the output equipment can be in normal operation.

Introduction of XW11-23 Tianjiu Standard Double Shaft Cycloid Reducer with Fan
Because of structural reasons, the single-stage speed reducer is small for 3, generally not more than 10, common speed reducer for: 3.4.5.7.10, 15, 20, 25, 30, 35, 40, 50, 70, 80, 100.

The number of reducer stages generally does not exceed 3 stages of reduction, but there are some customized reducers with large reduction ratios that have 4 stages of reduction.

Servo planetary reducer rated input speed can reach 18000rpm (with the size of the reducer itself, the larger the reducer, rated JDX edge drive reduction JC/T878.2-2001MHS, HS series gearbox.

The smaller the fixed input speed) above, industrial grade servo planetary reducer output torque is generally not more than 2000Nm, special large torque servo planetary reducer can do more than 10000Nm.

The working temperature is from -25℃ to 100℃, and the working temperature can be changed by changing the grease.
