WHX Worm Gear Reducer

WHX Worm Gear Reducer Technical Specifications

Series] WH Worm Gear Reducer

Structural form] Worm gear underneath

Input Connection] Shaft-mounted

Number of stages]: One stage

Reduction ratio]: 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, nine types (please contact the customer for the specific reduction ratio).

Center distance]: 42, 65, 80, 100, 120, 125, 150, 160, 180, 200, 210, 250, 280, 300, 320, 360, 400, 420, 450, 500, 20 types (please contact our customer service for specific center distance).

Motor power] 0.5KW (according to customer needs to choose, please contact the website customer service for specific)

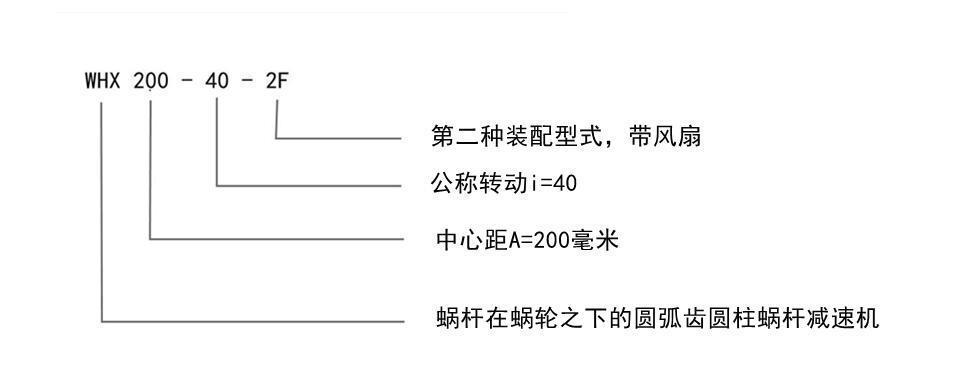

WHX worm-gear reducer models and representation method
WHX Worm Gear Reducer Model and Method of Expression

WHX Worm Gear Reducer Product Introduction
WHX worm gear reducer conforms to JB2318-79 standard.

WHX worm gear reducer is a power conveying mechanism that utilizes the speed converter of gears to decelerate the number of revolutions of the motor to all the revolutions and get a larger torque.

WHX-worm gear reducer is a combination of one or more pairs of meshing gears, worm gears, and worm gears mounted in a rigid sealed case.

WHX-Worm Gear Reducer with Worm Gear can be under the Worm Gear.

WHX Worm Gear Reducer Product Features

1. High strength of tooth surface and high bearing capacity. Adopting cylindrical worm gear with circular cross-section, the worm gear teeth are conjugated with the worm gear in a circular arc, because the worm gear and worm gear are convex-concave meshing, the radius of curvature in the meshing area is large in the vast majority of the integrated radius of curvature, which reduces the stress on the tooth surface, increases the strength of the tooth surface, and improves the load carrying capacity.
2. Worm gear tooth root bending strength, transfer capacity. The tooth shape reasonably thins the worm tooth thickness and increases the thickness of the worm gear tooth root, thus the bending strength of the worm gear tooth root increases and the transmission capacity increases.
3. High efficiency and low temperature. The contact line and the circumferential speed angle is mostly between 40° and 90°, which is easy to form liquid lubrication, and the coefficient of friction between the tooth surfaces is small.
4. Large rotation ratio, more compact than staggered shaft helical gear mechanism.
5. Self-locking, large safety coefficient. When the lead angle of the worm is smaller than the equivalent friction angle between the teeth of the meshing wheel, the mechanism is self-locking and can realize reverse self-locking, i.e., only the worm can drive the turbine wheel, but not the worm wheel can drive the worm.
6. Worm gear and worm gear engagement instantaneous contact line direction and want you to the sliding direction of the angle is larger, easy to form and maintain the oil film, the friction coefficient is small, the tooth surface wear is small, high transmission efficiency.

WHX worm gear reducer scope of use
WH worm gear reducer is suitable for the working temperature of -40℃-40℃. When the working environment temperature is lower than 0℃, the lubricating oil must be warmed up to above 0℃ before starting.

WH worm gear reducer is widely used in various industries, such as petroleum, environmental protection, chemical industry, cement, conveying, textile, pharmaceutical, food, printing, lifting, mining, metallurgy, construction, power generation and so on.

WHX Worm Gear Reducer Product Appearance
