SCWU Worm Gear Reducer

SCWU Worm Gear Reducer Overview

SCWU worm gear reducer is a type of SCW worm gear reducer, which is SCW worm gear reducer with worm gear under worm wheel.

SCWU worm gear reducer is a hollow shaft type worm gear reducer, i.e., a multi-stage reducer composed of a helical gear reducer at the output end of the worm gear reducer.

A very low output speed can be obtained. It is a combination of helical gear stage and worm gear stage, which has higher efficiency than pure single-stage worm gear reducer.

SCWU worm gear reducer conforms to the ministerial standard JB2318-79, and meets the requirements of standardization and serialization.

Circular arc cylindrical worm gear rotation, also known as curved surface worm gear rotation, the tooth shape is in the form of convex-concave surface conjugate, the worm gear is concave, the worm wheel is convex, the worm gear tooth profile is circular arc type, code name is ZC worm.

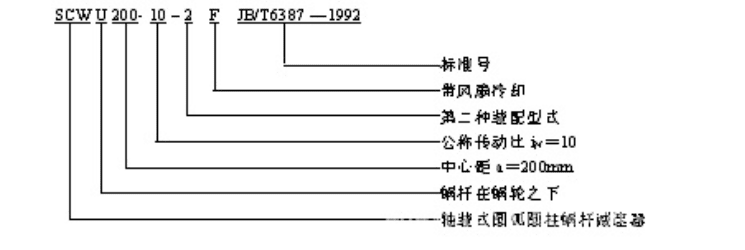

SCWU Worm Gear Reducer Sample Drawing

Features of SCWU worm gear reducer

Compact and reasonable structure, beautiful modeling, body design with shock absorption, heat dissipation, noise reduction.

Small vibration, low noise, low energy consumption.

Adoption of new sealing device, good protection performance, strong adaptability to the environment, can continue to work in corrosive, humid and other harsh environments.

Strong load-bearing capacity, smooth rotation, reliable and durable, high efficiency, pure gear rotation efficiency up to 96.

The key parts of SCWU worm gear reducer are made of high wear-resistant high-quality alloy materials and are subject to special heat treatment and precision machining.

According to the principle of modular combination system, SCWU worm gear reducer has an extremely large number of motor compositions, mounting positions and structural programs, and can be selected according to your actual needs at any speed and various structural forms.

SCWU worm gear reducer has low temperature rise, low noise and large rotation ratio.
