CWS Series Worm Gear Reducer

CWS Series Worm Gear Reducer Model Description

1.CW series worm gear reducer is divided into three models: CWU, CWS and CWO.

CWU-Worm gear reducer with worm gear under the worm wheel;

CWS-Cylindrical Worm Gear Reducer with worm gear on the side of worm wheel;

CWO-cylindrical worm gear reducer with worm shaft above the worm wheel;

2. CW series adopts single-stage worm gear reducer, the worm shaft can be transported in both positive and negative directions, and the input speed does not exceed 1500r/min.

3.CWS series worm gear reducer specific CWS125/140/160/200/250/280/315/355/100/450/500 worm gear reducer.

4.There are 16 kinds of center distance of CWS series worm gear reducer:63,100,125,140,160,180,200,225,250,280,315,355,400/,450/500

5.CWS series worm gear reducer transmission score: 5, 6.3, 8, 10, 12.5, 16, 20, 25, 31.5, 40, 50, 63

6.CWS series worm gear reducer adopts single-stage worm gear reduction drive, which conforms to the standard GB9147-88.

7.The input power of CWS series worm gear reducer ranges from 0.39-189KW, and the output torque is from 107-43500N.m. The output torque is from 1.5KW to 1.5KW.

CWS series worm gear reducer marking example

CWS Worm Gear Reducer Marking Example

CWS Series Worm Gear Reducer Use Environment

1.CWS worm gear reducer worm speed does not exceed 1500r/min.

2.The worm shaft of CWS worm gear reducer can be operated in forward and reverse rotation.

3.CWS worm gear reducer working environment temperature is -40℃- +40℃ working environment temperature is lower than -0℃.

4.The lubricating oil must be heated to above 0℃ before the start of CWS worm gear reducer, and cooling measures must be taken when the working environment temperature is higher than 40℃.

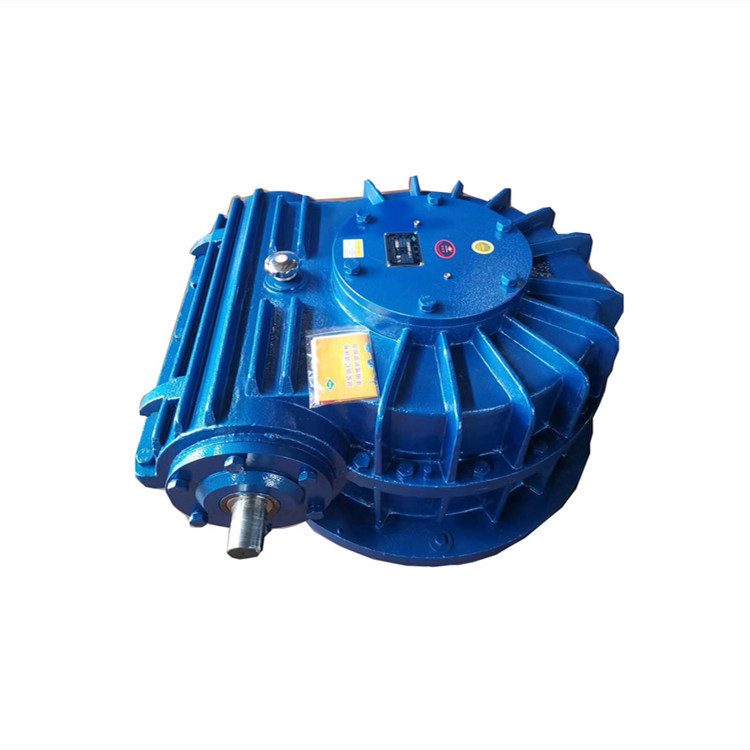

CWS Series Worm Gear Reducer Product Appearance
