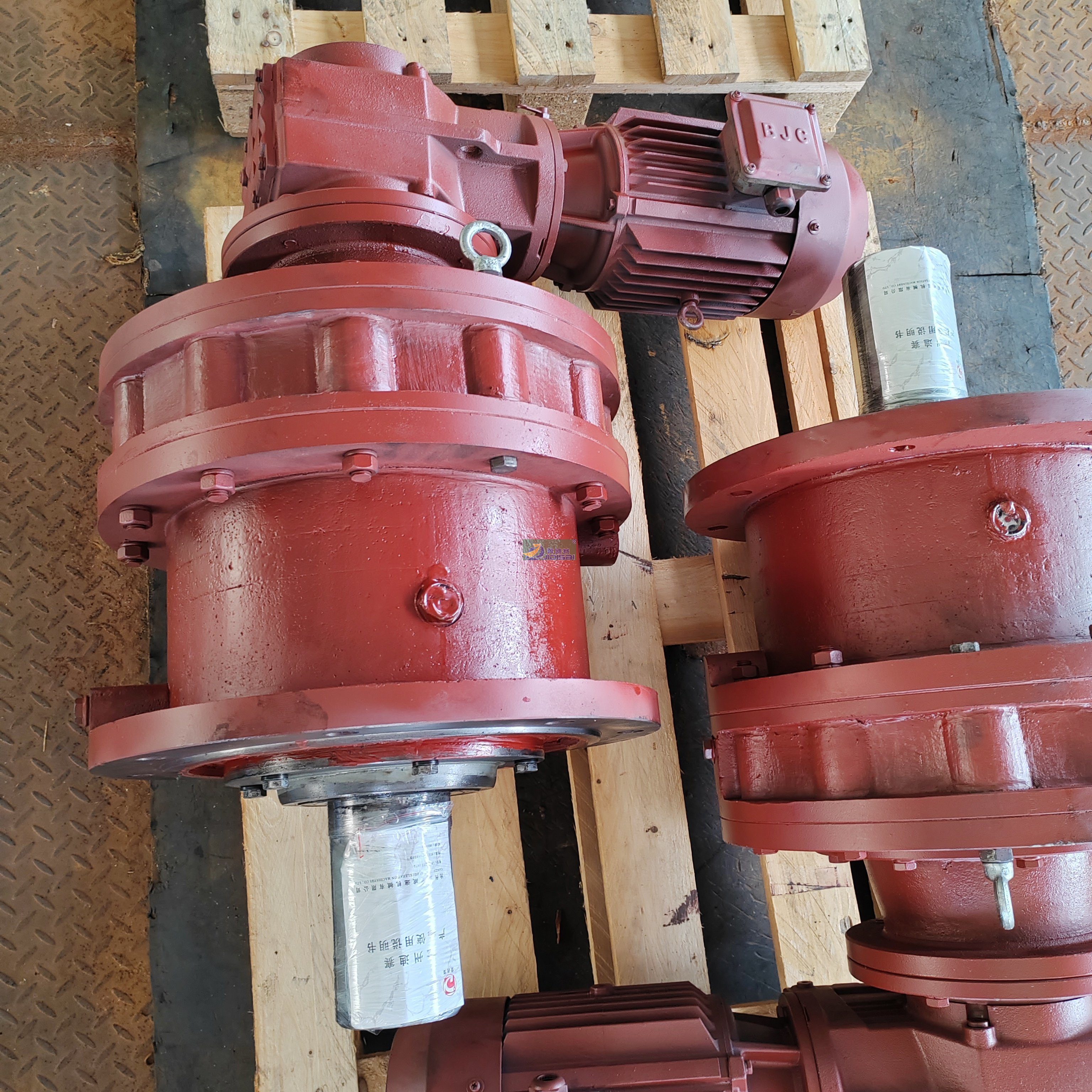

8000 Series Cycloid Reducer Combined with KAF Series Arc Bevel Gear Hardened Reducer

8000 Series Cycloid Reduction Gearboxes Combined with KAF Series Arc Bevel Gear Hardened Reduction Gearboxes

8000 Series Planetary Cycloid Reducer

8000 series planetary cycloid reducer is a kind of reduction mechanism with advanced design and novel structure by applying the principle of planetary transmission and adopting cycloid pinwheel meshing.

The 8000 series cycloid reducer has replaced two-stage and three-stage ordinary cylindrical gear reducer and cylindrical worm reducer in most cases.

8000 series cycloid reducer has been widely used in military, aerospace, metallurgy, mining, petroleum, chemical industry, shipping, light industry, food, textile, printing and dyeing, pharmaceuticals, rubber, plastics and lifting and transportation.

K series helical-bevel gear reducer

K series helical-bevel gear reducer is a new type of right-angle reduction gear composed of helical gear transmission arc gear bevel gear transmission.

K series helical-bevel gear reducer is optimized according to international standards, with the advantages of high precision, high efficiency, fine ratio grading, wide range, large transmission torque, reliable performance, low noise, flexible installation, easy to use and maintain.

Features of KAF Series Arc Bevel Gear Hardened Reducer

Vertical output, compact structure, large torque transmission by hardened gear surface, high precision gears ensure smooth operation, low noise and long service life.

Installation: foot mounted, hollow shaft mounted, flange mounted, torque arm mounted, small flange mounted.

Input mode: motor direct connection, motor belt connection or input shaft, coupling flange input.

Output method: hollow shaft output or solid shaft output, with an average efficiency of 94%.

The combination with R series can get bigger speed ratio.

KAF Series Arc Bevel Gear Hard Gear Reducer Structure Forms
K-axis extension type, foot mounted KA-axis mounted coupling

KF-Shaft extension type, flange mounted KAF-Shaft mounted, flange mounted

S-indicates shaft input
